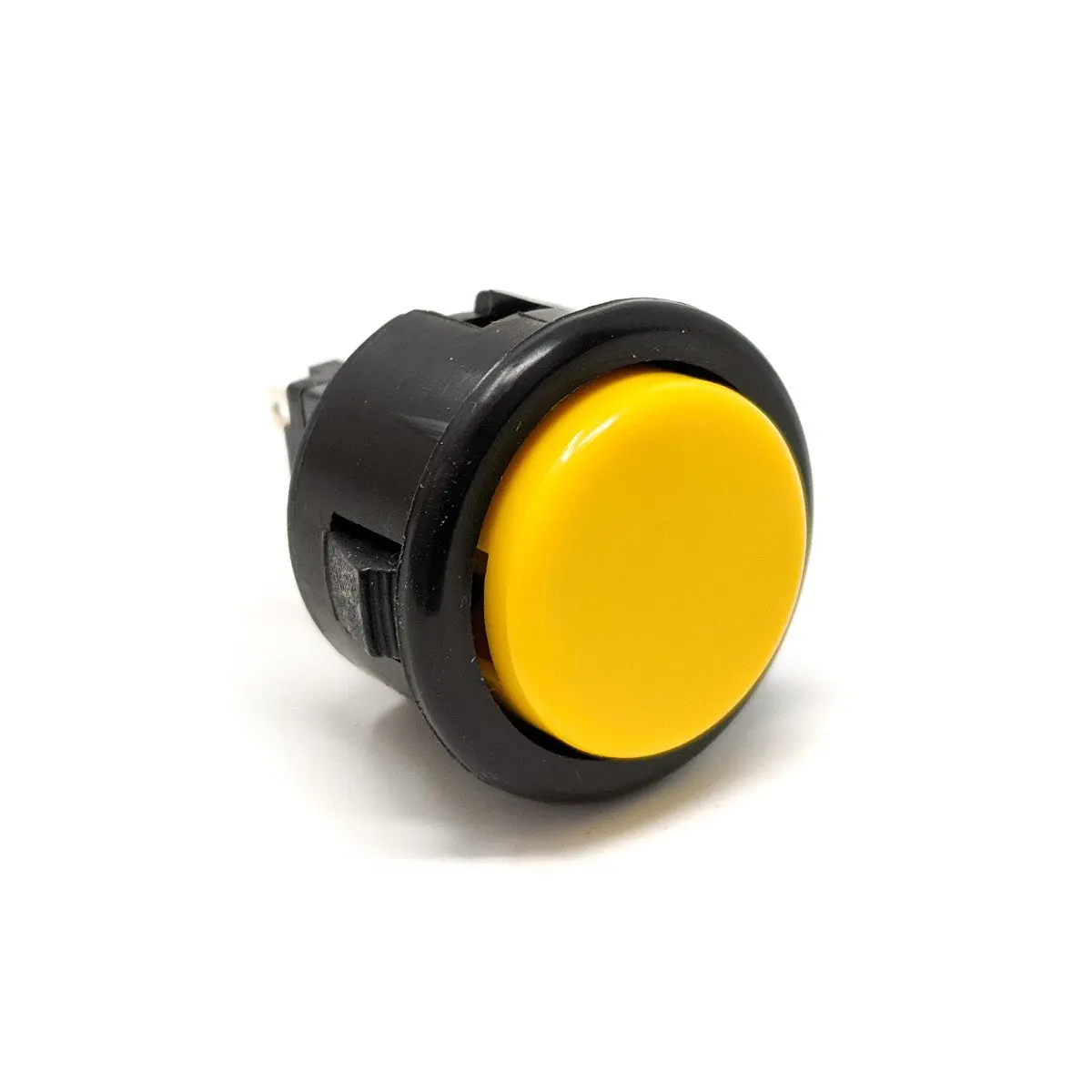

Seimitsu PS-14-D 24 mm Snap-in Button - Black & Yellow
The Black & Yellow Seimitsu PS-14-D is a solid color, flat top, 24mm pushbutton designed to snap into a metal control panel.
This pushbutton is available in 7 colors, Red, White, Blue, Green, Yellow, Pink and Black. It is also available with a black rim.

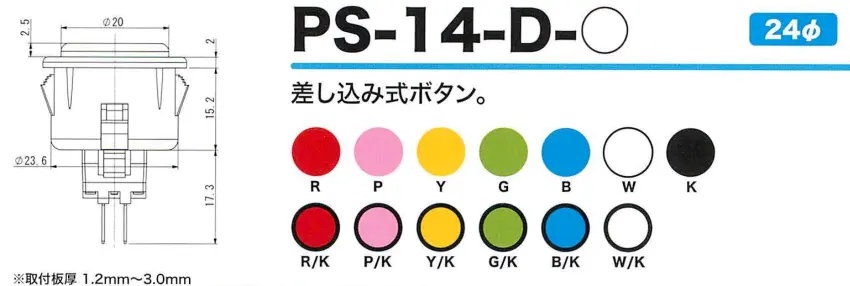

Button Specification:
- Solid black rim, Solid color plunger
- Diameter: 24 mm (0.945 inch)
- Overall diameter: 27 mm (1.063 inch)
- .110 quick connects
- Used most commonly for Start, Select, Home action buttons and Hit Boxes
- Snap-in Button

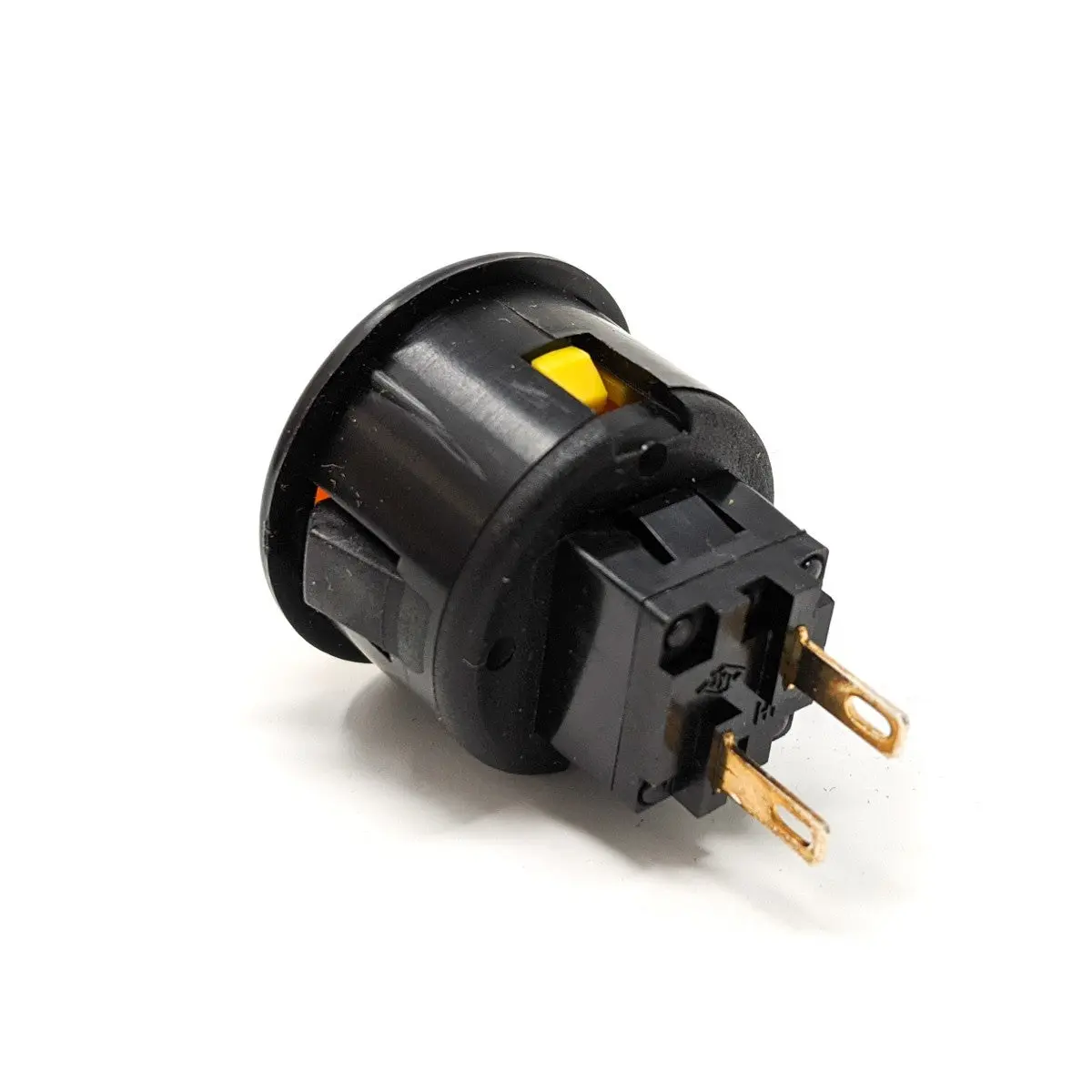

Microswitch Specification:
- Product Name: MM9-3
- Manufacturer: Tokai Tushinkizai (東海通信器材株式会社)
- Operating force: 100 ± 30g
- Stroke distance to Operating Position: 2.5 ± 0.3mm
- Bounce back to Free Position: Less than 10mSec
- Mechanical Endurance (Lifespan Cycle): Over 2,000,000 times
$1.12
Original: $3.75
-70%Seimitsu PS-14-D 24 mm Snap-in Button - Black & Yellow—
$3.75
$1.12Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The Black & Yellow Seimitsu PS-14-D is a solid color, flat top, 24mm pushbutton designed to snap into a metal control panel.
This pushbutton is available in 7 colors, Red, White, Blue, Green, Yellow, Pink and Black. It is also available with a black rim.
Button Specification:
- Solid black rim, Solid color plunger
- Diameter: 24 mm (0.945 inch)
- Overall diameter: 27 mm (1.063 inch)
- .110 quick connects
- Used most commonly for Start, Select, Home action buttons and Hit Boxes
- Snap-in Button
Microswitch Specification:
- Product Name: MM9-3
- Manufacturer: Tokai Tushinkizai (東海通信器材株式会社)
- Operating force: 100 ± 30g
- Stroke distance to Operating Position: 2.5 ± 0.3mm
- Bounce back to Free Position: Less than 10mSec
- Mechanical Endurance (Lifespan Cycle): Over 2,000,000 times
