Seimitsu Alutimo SSPS-24N Clear 24mm Screw-in Mechanical button
Seimitsu's new 24mm convex Japanese style buttons with Cherry MX Silver switch is here!

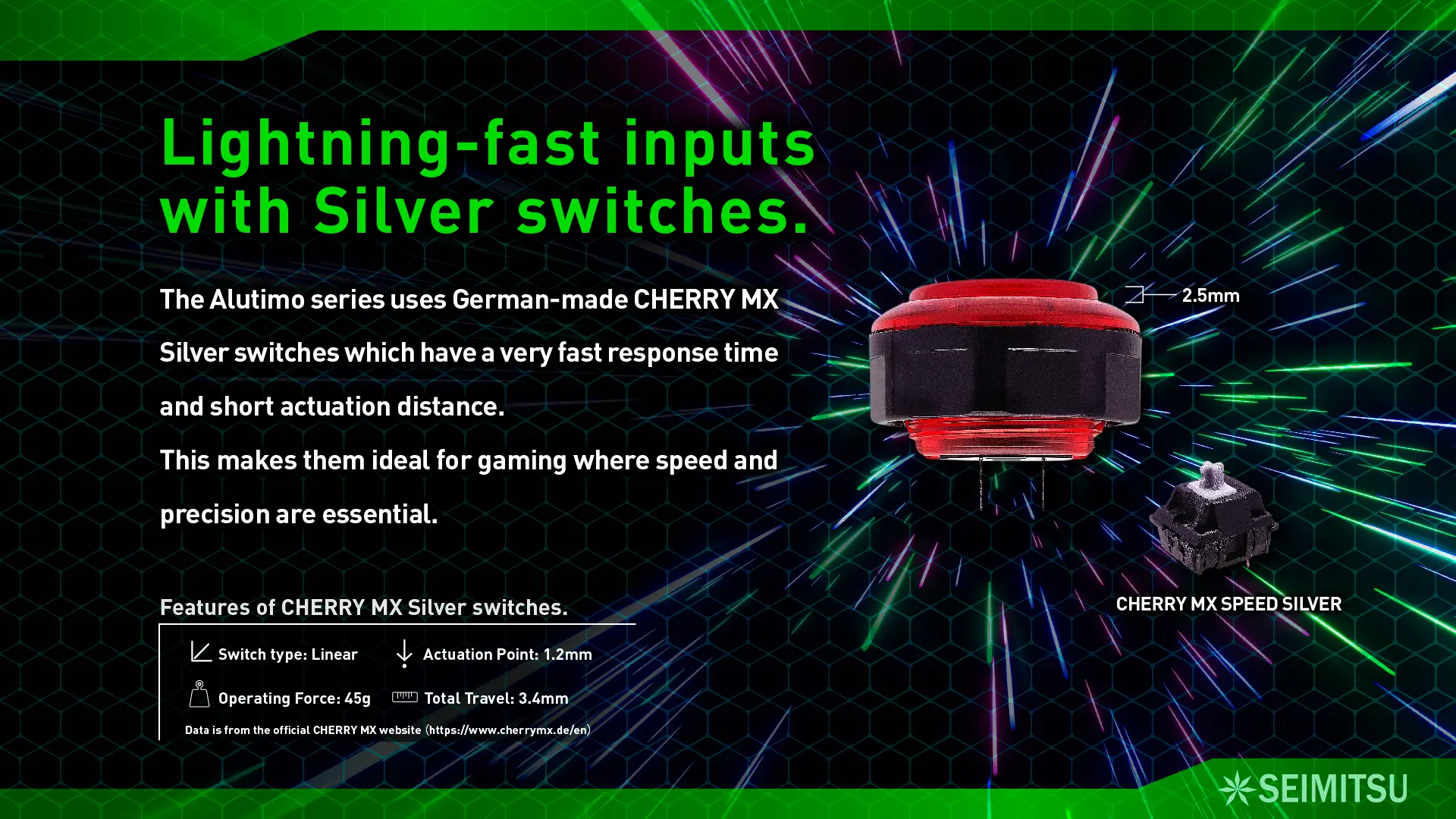

A New style of pushbutton with Cherry MX Silver Speed switch to offer speedy inputs with better performance.
The Seimitsu Alutimo SSPS-24N has a threaded solid color body with a solid plunger.
These buttons are perfect for any candy cabinet or fight stick rebuild.Ā This button can be used not only in candy cabinets or fight sticks with a thin control panel but also can be used in a thicker control panel that isĀ over 1/4" thickness.
Included are pushbutton,Ā Cherry MX Silver mechanical switch (3 Pin / Plate Mounted type)Ā and screw on lock nut.
Button Specification:
- Solid color rim, SolidĀ color plunger
- Diameter: 24 mm (0.945 inch)
- Overall diameter: 27 mm (1.063 inch)
- .110" quick connects
- For Metal, wooden or plastic/fiberglass control panels
- Button, locking nut, 1.0mm washer andĀ Cherry MX Silver mechanical switch (3pin)Ā included
- Total travel distance moddable byĀ 0.2mm washer (Available separately)
- Screw-in buttons
- Compatible with various Cherry MX switches
Cherry MX switches:
| Switch Type | Operating Force | Actuation Point | Total Travel | |
| MX Blue | Clicky/Tactile | 60g | 2.2mm | 4.0mm |
| MX Brown | Tactile | 55g | 2.0mm | 4.0mm |
| MX Red | Linear | 45g | 2.0mm | 4.0mm |
| MX Black | Linear | 60g | 2.0mm | 4.0mm |
| MX Speed Silver | Linear | 45g | 1.2mm | 3.4mm |
| MX Silent Red | Linear | 45g | 1.9mm | 3.7mm |
| MX Silent Black | Linear | 60g | 1.9mm | 3.7mm |
| MX Low Profile Red | Linear | 45g | 1.2mm | 3.2mm |
| MX Low Profile Speed | Linear | 45g | 1.0mm | 3.2mm |
| MX Green | Clicky/Tactile | 80g | 2.2mm | 4.0mm |
| MX Clear | Tactile | 65g | 2.0mm | 4.0mm |
| MX Grey | Tactile | 80g | 2.0mm | 4.0mm |
